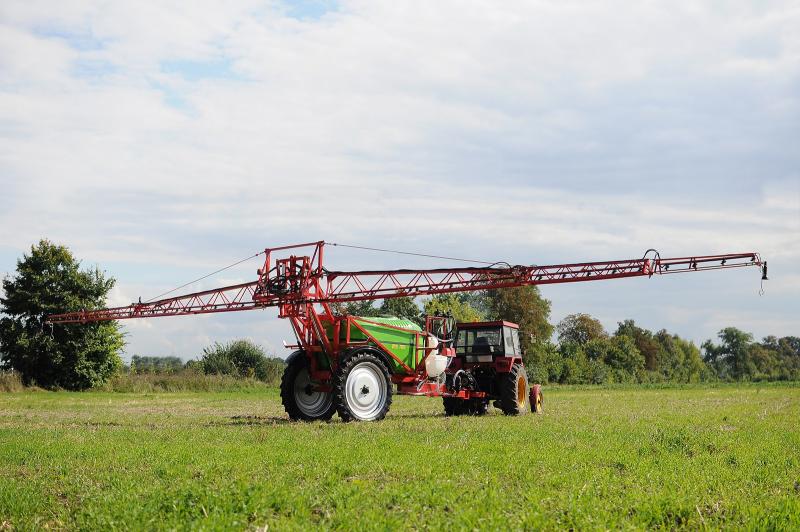

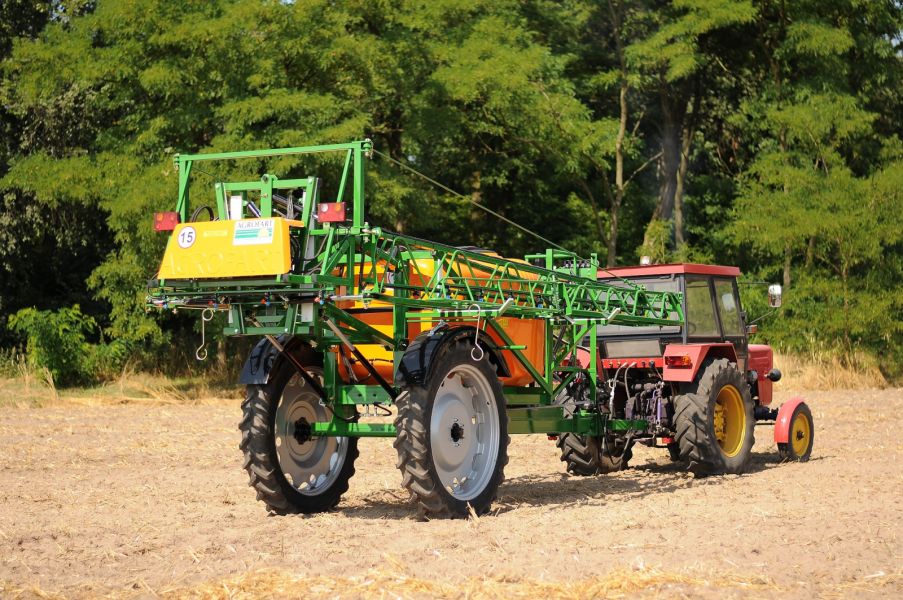

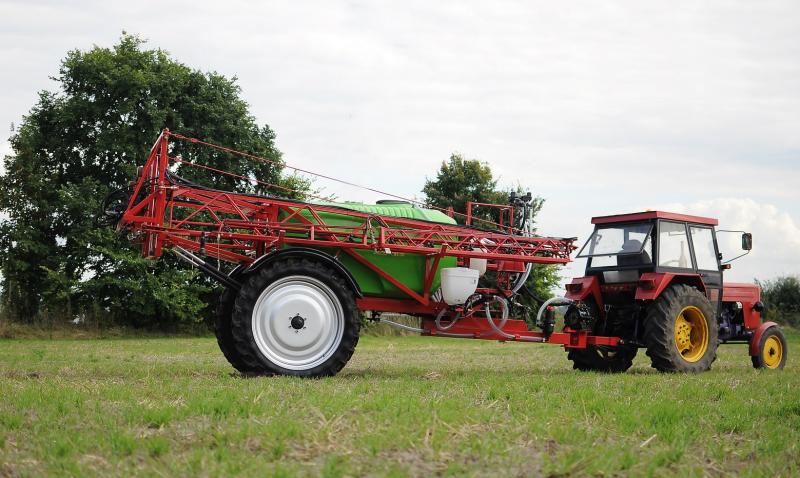

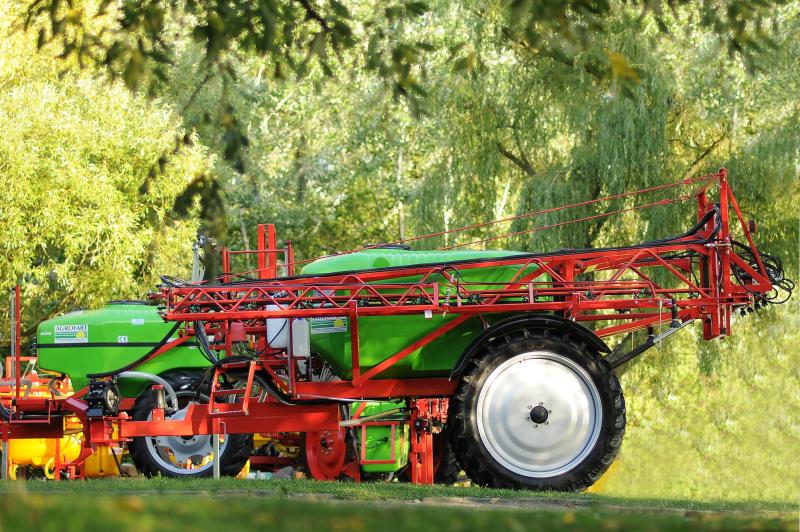

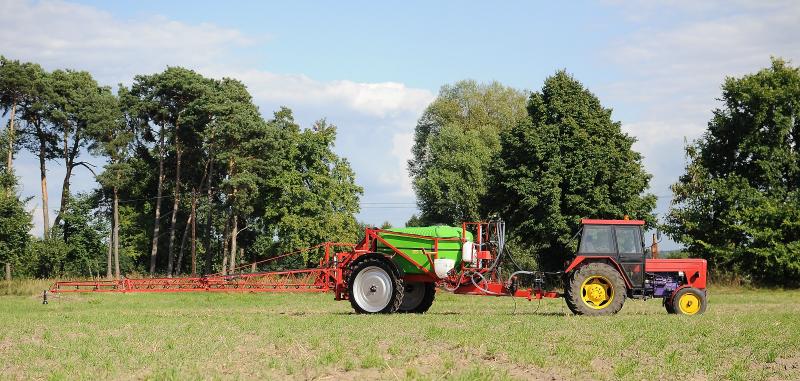

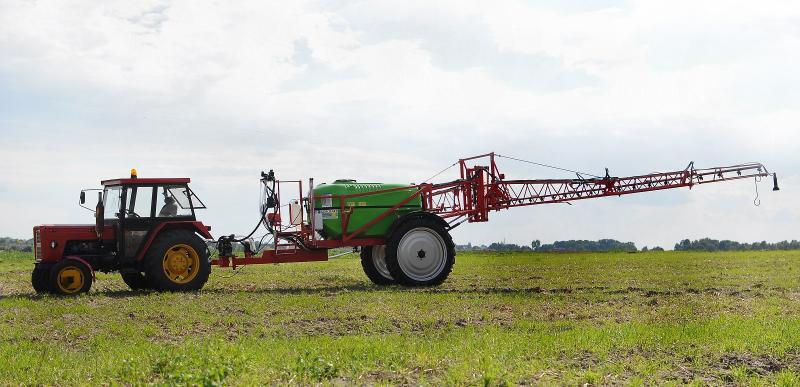

Standard euipment:

• 2300 l tank, made of laminate resin,
• Additional internal tank  for cleaning the system,
• Mixer basket filter,
• 15 m booms,electrostatically painted,
• Mechanism of hydraulic leveling and spreading booms (unrelard),
• "Trapeze" system of booms lifting,
• AP-05 / AP-07 panel for hydraulic control,
• Hydraulic shock-absorption mechanism,
• Bertolini/ Comet pump (Italy),
• 5-sectional  control unit (Tecomec),

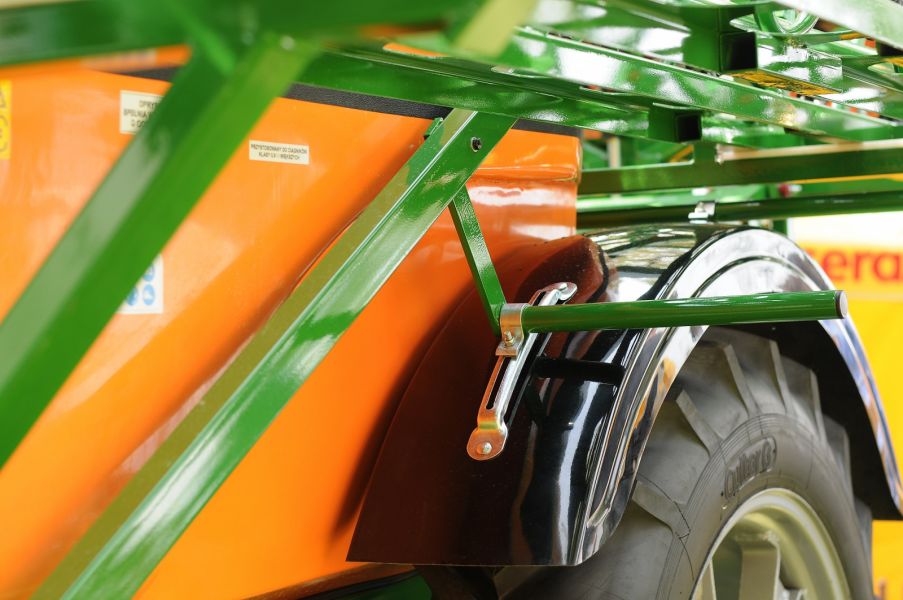

• Wheels  36" x 9,5" with fenders,
• Adjustable axle,
• Twist-rotary hook,
• Road lighting,
• Triple nozzle holders (TeeJet),
• Spray nozzles: VP 02-04 (TeeJet);



Additional equipment at an extra charge

• Electric main valve with panel  on-off (Tecomec),
• Electric control unit with panel (Tecomec),
• AMG-100 computer, 5 sectional,
• BRAVO 180s computer, 5 sectional (ARAG),
• BRAVO 180s computer, 7 sectional (ARAG),
• BRAVO 300s computer, 5  sectional (ARAG),
• BRAVO 300s computer, 7  sectional (ARAG),
• BRAVO 400s computer, 5 sectional GPS (ARAG),
• BRAVO 400s computer, 7 sectional GPS (ARAG),
• GPS navigation with amplified antenna,
• Automatic leveling DIVERIX,
• 18 m booms with hydraulic leveling (model AF2318HT),
• 21 m booms with hydraulic leveling (model AF2321HT),
• 24 m booms with hydraulic leveling (model AF2324HT),
• Quartering (distribution of boom on 4 actuators),
• 42" x 9,5" wheels,
• 42" x 11,2" wheels,
• 42” x12,4” wheels,
• Foam marker,
• Side mixer,
• AD serie nozzle, AD-IA serie (sizes: 02-06) (Tecomec),
• „anti-drift" nozzle, AD-IA/D serie (Tecomec),
• Lighting for night work (2 LED halogens),
• Lighting for night work (mini LED lamps),
• Own hydraulic system,
• Liquid suction system,
• Additional cleaning nozzles.



Total mass 1850 kg

Suggested tractor power: 70 KM
