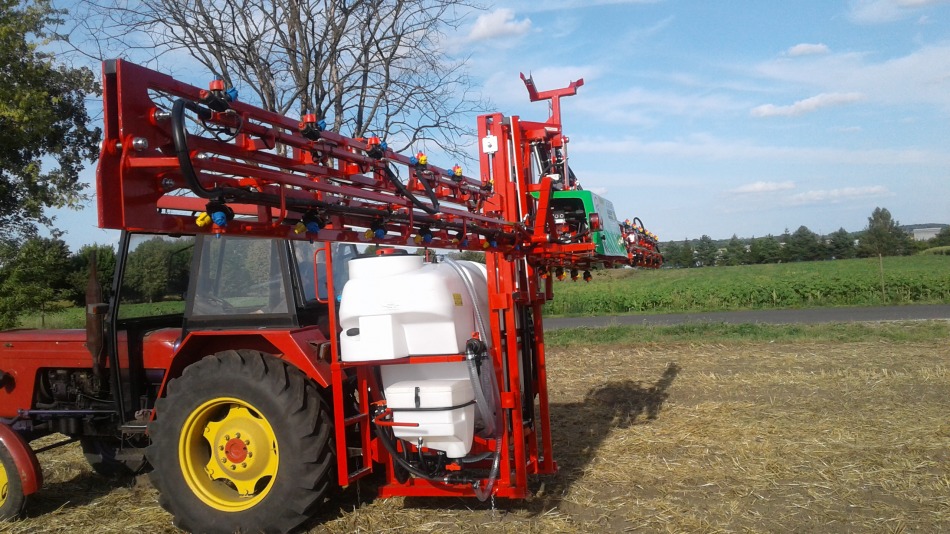

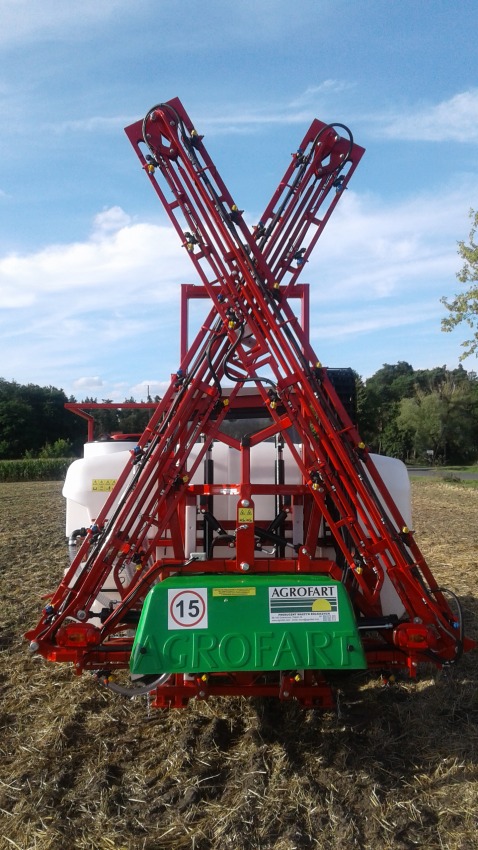

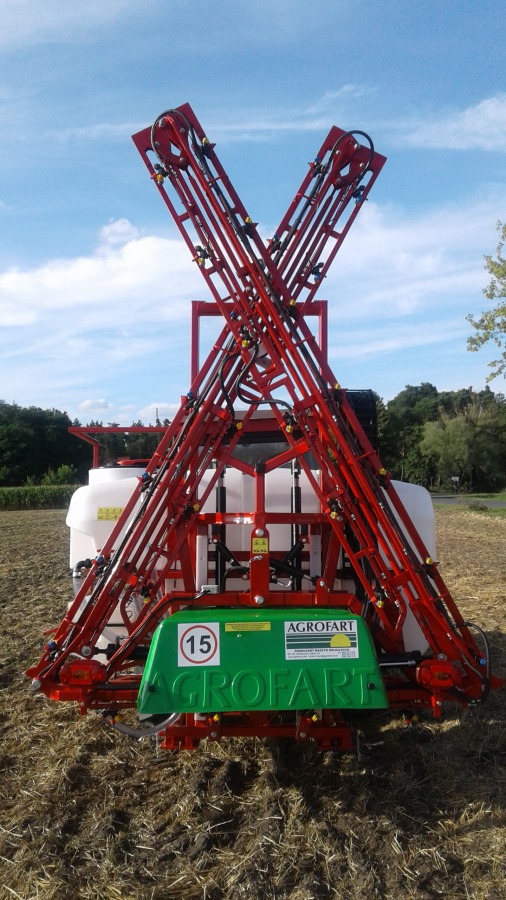

HUNG FIELD SPRAYER AF1015HzX
Standard equipment:

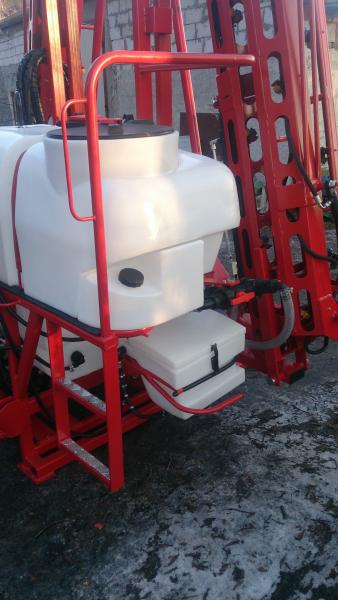

- Tank of capacity 1000, made of polyester resin,
- Additional internal tank for flushing the system, with a capacity of 1000 litres,
- Side mixer,
- Lances of 15 meters length, electrostatically painted,
- Hydraulic lifting and unfoldingof lances,
- Italian pump of capacity 160 l per minute,
- Italian, 5-sectional pressure control valve Tecomec,
- “Double” type frame on bearings,
- Cable guide above the frame,
- Road lighting,
- Tripple nozzle holders,
- Nozzles MMAT RS 110/02-04;
Additional equipmentat an extra charge
- Electric main valve with panel on-off (Tecomec),
- Electric control unit with panel (Tecomec),
- AMG-100 computer, 5 sectional,
- BRAVO 180s computer, 5 sectional (ARAG),
- BRAVO 180s computer, 7 sectional (ARAG),
- BRAVO 300s computer, 5 sectional (ARAG),
- BRAVO 300s computer, 7 sectional (ARAG),
- BRAVO 400s computer, 5 sectional GPS (ARAG),
- BRAVO 400s computer, 7 sectional GPS (ARAG),
- GPS navigation with amplified antenna,
- 18 m booms with hydraulically opened on actuators (model AF 1018HzW),
- Foam marker,
- Side mixer,
- AD serie nozzle, AD-IA serie (sizes: 02-06) (Tecomec),
- „anti-drift" nozzle, AD-IA/D serie (Tecomec),
- Lighting for night work (2 LED halogens),
- Lighting for night work (mini LED lamps),
- Liquid suection,
- Own hydraulic system,
- Automatic levelling DIVERIX.
Total weight: 550 kg
Preferred power of the tractor : 80KM
